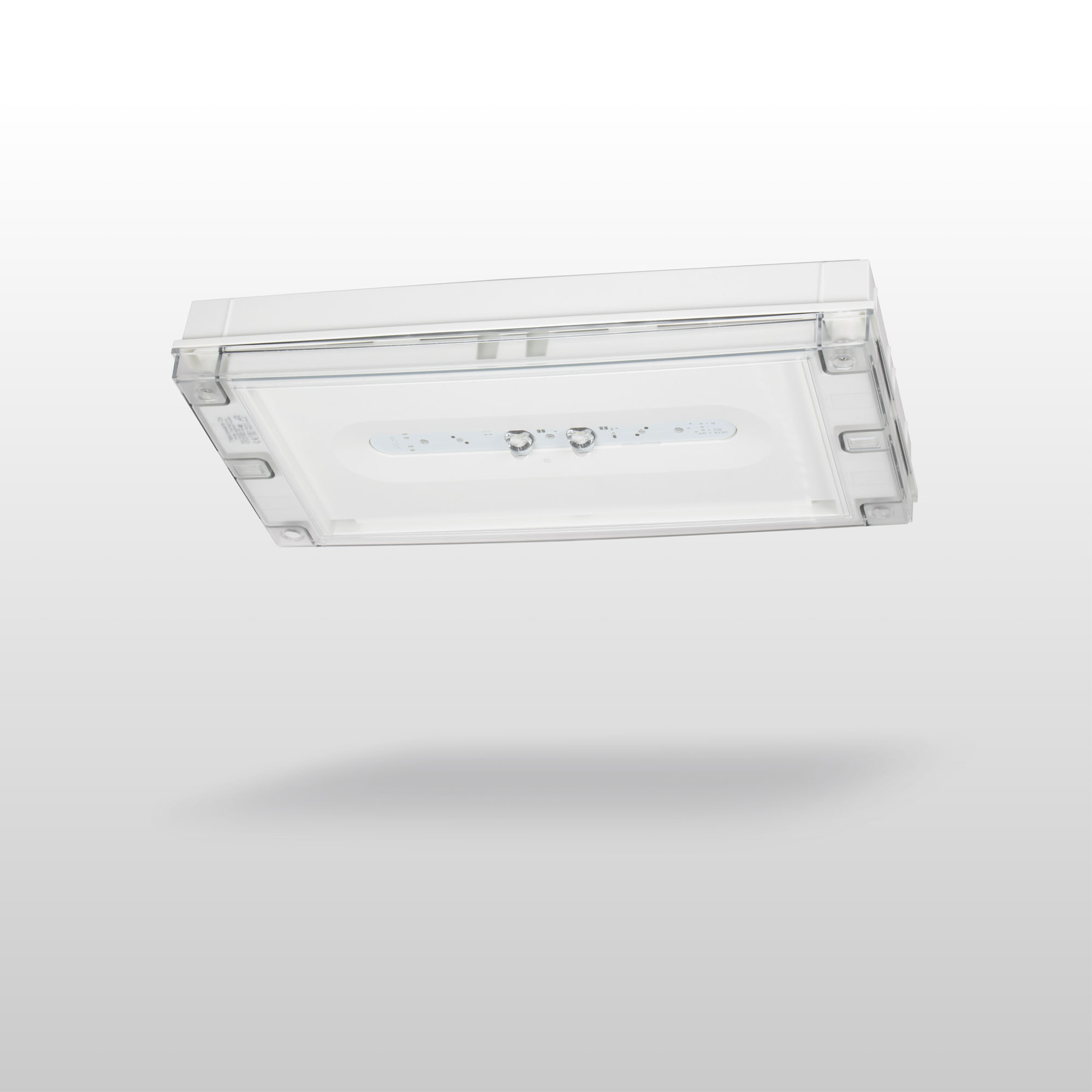

Solid Line Midbay emergency light Y4371W
24-230 V centrally supplied emergency light for escape routes (Invidually packed TWT4371W)
Solid Line Midbay is developed for escape route emergency lighting.
High enclosure class (IP65) ensures that the luminaire is completely dust proof and water proof.
Solid is suitable for example for industrial premises and parking halls. Escap and centrally supplied luminaires are also suitable for outdoor use. The Solid luminaire uses long lasting leds as its light source.
Special attention has been paid to the design, for easy installation.
| Product code | Y4371W | Electrical number (FI) | 4282350 | |
|---|---|---|---|---|
| GTIN | 6438045021607 | TARIC code | 94056180 | |
| Weight | 1,10 kg | Measurements | 37,10 × 18,10 × 5,70 cm | |
| Body material | plastic | CE Mark | Yes | |
| Colour | RAL9003 | Electrical Installation | 2 x 2,5 mm² (24 V), 3 x 2,5 mm² (230 V) | |
| EN 1838 | Yes | EN 60598-2-22 | Yes | |
| ETIM class | Emergency luminaire (EC001957) | Glow Wire Test of Plastic Materials (°C) | 650 | |
| IP Class | IP65 | Light Source | LED | |
| Luminous Flux (lm) | 300 | Max Input Power VA | 7,8 VA (24 V), 14,5 VA (230 V) | |
| Max Input Power W | 5,5 W (24 V), 6,5 W (230 V) | Mounting | Surface | |
| Nominal Supply Voltage | 24-230 V, 50/60 Hz AC, DC | Protection Class | III (24 V), II (230 V) | |
| Temperature Range Min - Max (°C) | -30…+50 | Suitable for Through-Wiring | Yes |
| Product code | Y4371W |
|---|---|
| Electrical number (FI) | 4282350 |
| GTIN | 6438045021607 |
| TARIC code | 94056180 |
| Weight | 1,10 kg |
| Measurements | 37,10 × 18,10 × 5,70 cm |
| Body material | plastic |
| CE Mark | Yes |
| Colour | RAL9003 |
| Electrical Installation | 2 x 2,5 mm² (24 V), 3 x 2,5 mm² (230 V) |
| EN 1838 | Yes |
| EN 60598-2-22 | Yes |
| ETIM class | Emergency luminaire (EC001957) |
| Glow Wire Test of Plastic Materials (°C) | 650 |
| IP Class | IP65 |
| Light Source | LED |
| Luminous Flux (lm) | 300 |
| Max Input Power VA | 7,8 VA (24 V), 14,5 VA (230 V) |
| Max Input Power W | 5,5 W (24 V), 6,5 W (230 V) |
| Mounting | Surface |
| Nominal Supply Voltage | 24-230 V, 50/60 Hz AC, DC |
| Protection Class | III (24 V), II (230 V) |
| Temperature Range Min - Max (°C) | -30…+50 |
| Suitable for Through-Wiring | Yes |
Light Distribution Charts
- 1 lux table for the centre line of an escape route, in accordance with EN 1838.
- Level of measurement 0.02 m, measurement results in emergency mode.
R1 distance from wall, X axis
R2 mounting distance, X axis
R4 distance from wall, Y axis
Emergency lighting for escape routes (ceiling mounting)
| Mounting height (m) | Below the light (lx) | R1 (m) | R2 (m) | R4 (m) |
| - | - | 1 lx | 1 lx | 1 lx |
| 2.5 | 57 | 5 | 12 | 1 |
| 3 | 39 | 5.5 | 14 | 1 |
| 4 | 22 | 6 | 16 | 1 |
| 6 | 9.5 | 7 | 20 | 1 |
| 8 | 5 | 8 | 20 | 1 |
| 10 | 3 | 9 | 21 | 1 |
| 12 | 2.5 | 9 | 21 | 1 |
