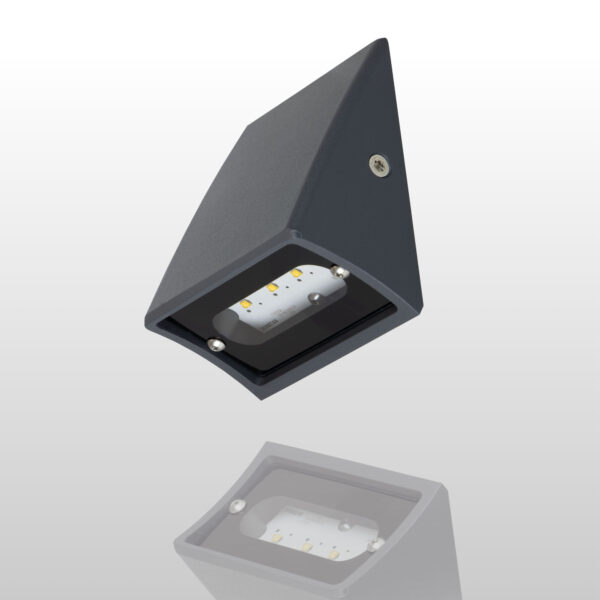

Smooth Zone emergency light TWTA852WAF
Self-contained Emergency Light with 1 h Battery and Wireless Central Monitoring
Teknoware Smooth is a small and elegant yet extremely durable emergency light optimised for outdoor use. Because of the stylish design, the luminaire blends seamlessly into the architecture of the building. The Smooth always consists of two units: the luminaire and a separated indoor electronic unit. The Smooth includes a 5-metre fire-proof installation cable between the units. The luminaire is designed for surface mounting on a wall. The Smooth has an impact-resistant cast aluminium casing (IK10), and it is dust- and waterproof (IP65 for the visible part of the luminaire). The standard colour of the luminaire is graphite grey (RAL 7024), other colours are available on request (e.g. white RAL 9003).
The Smooth Zone is a compact emergency light designed to illuminate open areas efficiently. The luminaire provides a broad, even pattern.
| Product code | TWTA852WAF | Electrical number (FI) | 4148662 | |
|---|---|---|---|---|
| GTIN | 6438045026879 | TARIC code | 94056180 | |
| Weight | 1,40 kg | Measurements | 10,00 × 6,00 × 11,00 cm | |
| Aalto Control | Yes | Backup (h) | 1 h | |
| Body material | cast aluminium | CE Mark | Yes | |
| Colour | RAL7024 (Graphite grey) | Electrical Installation | 3 x 2,5 mm² | |
| EN 1838 | Yes | EN 60598-2-22 | Yes | |
| ETIM class | Emergency luminaire (EC001957) | Glow Wire Test of Plastic Materials (°C) | 650 | |
| IP Class | IP20, IP65 | Light Source | LED | |
| Lumi Test | Yes | Luminous Flux (lm) | 201 | |
| Max Input Power VA | 3 VA | Mounting | Recess | |
| Nominal Supply Voltage | 220-240 V, 50/60 Hz AC | Protection Class | III | |
| Temperature Range Min - Max (°C) | 0...+35 | Suitable for Through-Wiring | Yes |
| Product code | TWTA852WAF |
|---|---|
| Electrical number (FI) | 4148662 |
| GTIN | 6438045026879 |
| TARIC code | 94056180 |
| Weight | 1,40 kg |
| Measurements | 10,00 × 6,00 × 11,00 cm |
| Aalto Control | Yes |
| Backup (h) | 1 h |
| Body material | cast aluminium |
| CE Mark | Yes |
| Colour | RAL7024 (Graphite grey) |
| Electrical Installation | 3 x 2,5 mm² |
| EN 1838 | Yes |
| EN 60598-2-22 | Yes |
| ETIM class | Emergency luminaire (EC001957) |
| Glow Wire Test of Plastic Materials (°C) | 650 |
| IP Class | IP20, IP65 |
| Light Source | LED |
| Lumi Test | Yes |
| Luminous Flux (lm) | 201 |
| Max Input Power VA | 3 VA |
| Mounting | Recess |
| Nominal Supply Voltage | 220-240 V, 50/60 Hz AC |
| Protection Class | III |
| Temperature Range Min - Max (°C) | 0...+35 |
| Suitable for Through-Wiring | Yes |
Scale Images
Downloads and Data sheets
| File name | Download |
|---|---|
| Product card | Download |
| General information about installing Teknoware lights | Download |
| Installation Guide Smooth - VOT117 | Download |
Accessories
| Product code | Electrical number | Description | |
|---|---|---|---|
| TWSA801 | 4148565 | Smooth Indicator LED unit TWSA801 | Add to cart |
