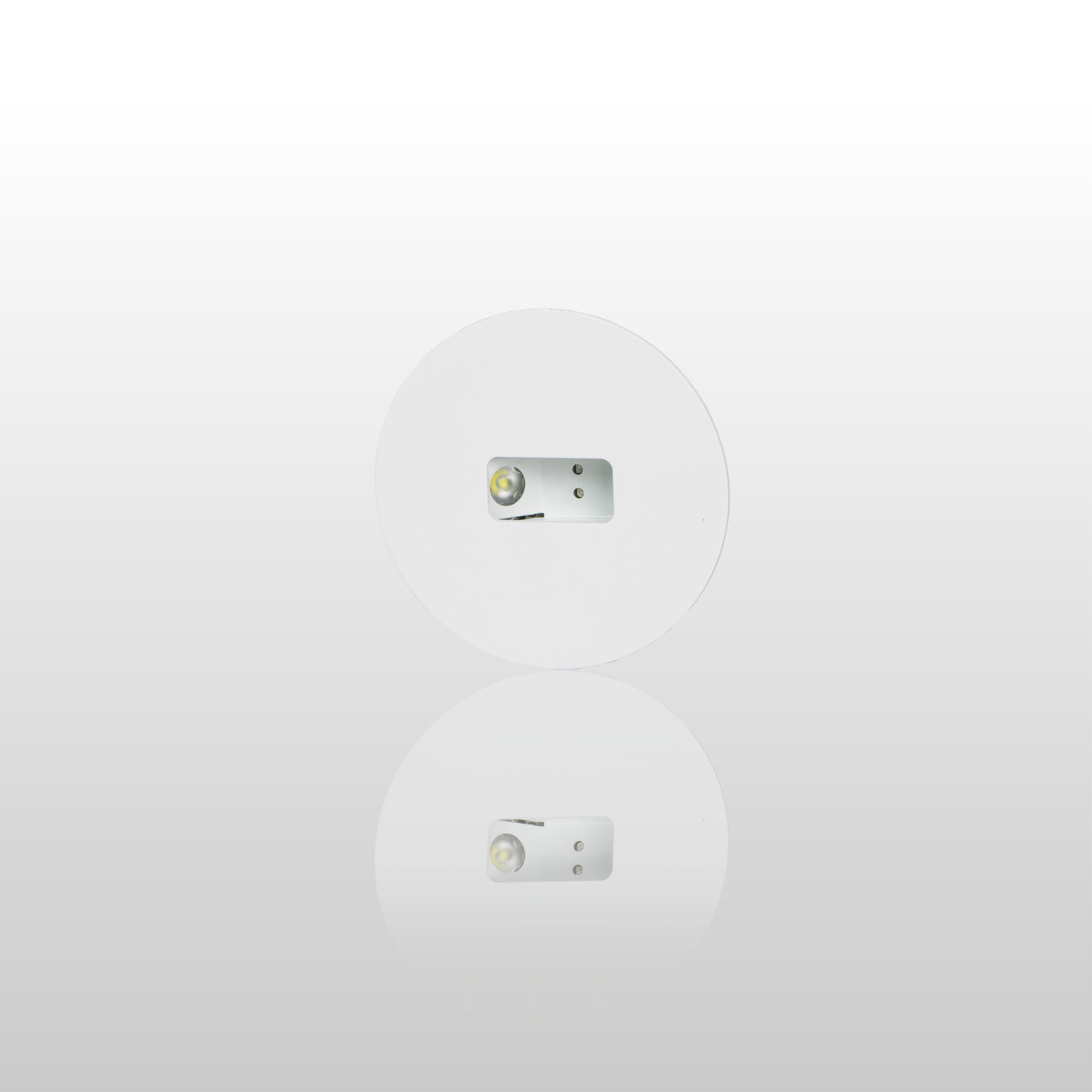

Slimspot II Angle emergency light TWSD192WM
Self-contained Escap Emergency light with 1h super capacitor and Lumi Test self-testing
Slimspot II is a recessed emergency light that is effective and seamless. It has an elegant and minimalist appearance, so it blends in with the surroundings and architecture. The broad Slimspot II product family and range of optics offers many options to suit a variety of applications and systems. Slimspot II is designed for indoor lighting, and it has durable metal framing. The standard colour of the luminaire is white. On request, it is also possible to order Slimspot II in black and grey to match the surrounding environment.

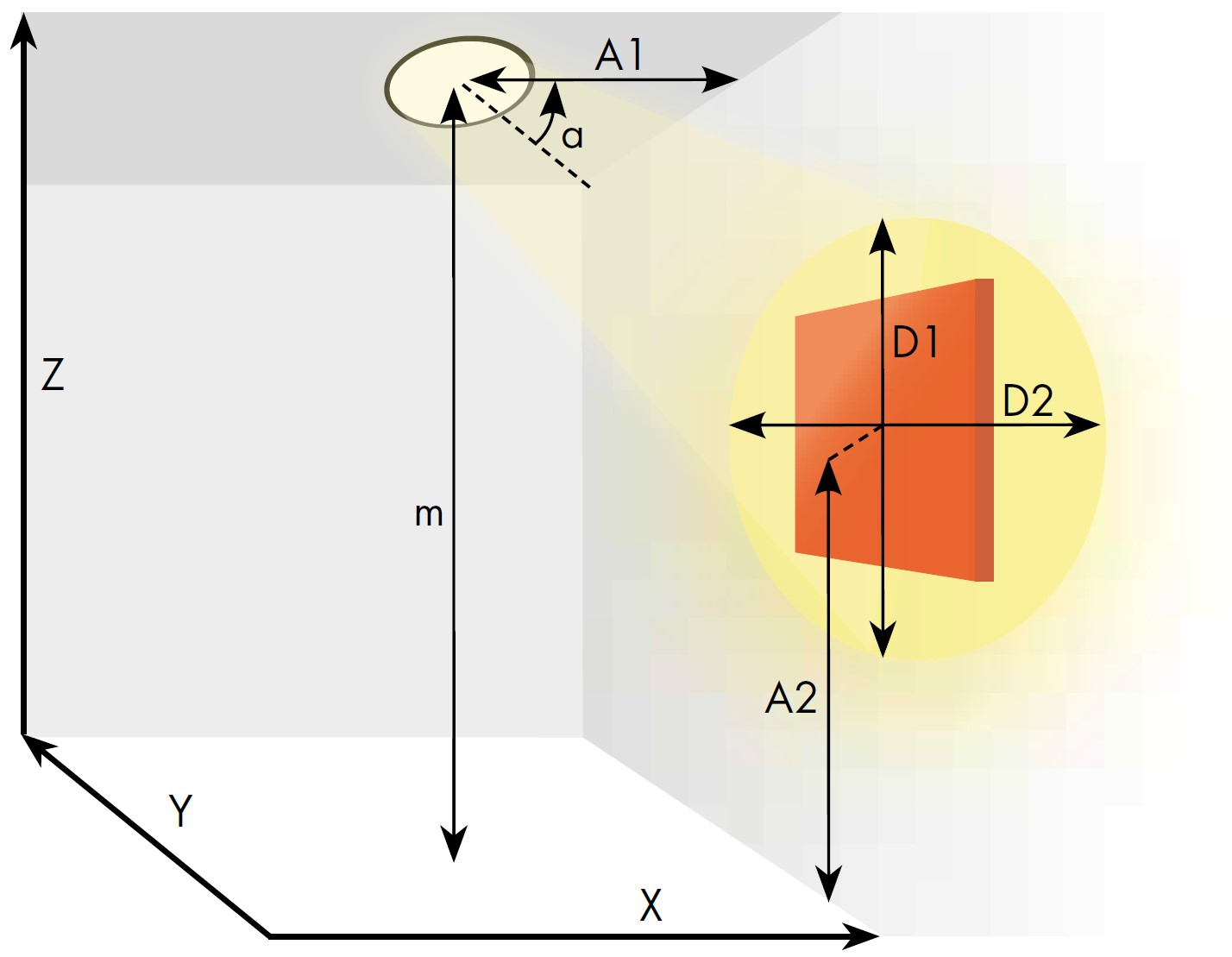

The Slimspot II Angle provides an angled light pattern that illuminates fire and safety equipment (such as fire alarm call points, first aid stations, firefighting equipment and panels) vertically with 5 lux according to EN 1838.
| Product code | TWSD192WM | Electrical number (FI) | 4148573 | |
|---|---|---|---|---|
| GTIN | 6438045026725 | TARIC code | 94056180 | |
| Weight | 0,80 kg | Measurements | 9,00 × 9,00 × 4,60 cm | |
| Backup (h) | Yes | Body material | metal | |
| CE Mark | Yes | Colour | RAL9003 (Signal white) | |
| Electrical Installation | 3 x 2,5 mm² | EN 60598-2-22 | Yes | |
| Escap | Yes | ETIM class | Emergency luminaire (EC001957) | |
| Glow Wire Test of Plastic Materials (°C) | 850 | IP Class | IP20 | |
| Light Source | LED | Lumi Test | Yes | |
| Luminous Flux (lm) | 60 | Max Input Power VA | 3 VA | |
| Mounting | Recess | Nominal Supply Voltage | 220-240 V, 50/60 Hz AC | |
| Protection Class | I | Aperture for Recess Mounting | ø75 | |
| Temperature Range Min - Max (°C) | -25...+35 | Suitable for Through-Wiring | Yes |
| Product code | TWSD192WM |
|---|---|
| Electrical number (FI) | 4148573 |
| GTIN | 6438045026725 |
| TARIC code | 94056180 |
| Weight | 0,80 kg |
| Measurements | 9,00 × 9,00 × 4,60 cm |
| Backup (h) | Yes |
| Body material | metal |
| CE Mark | Yes |
| Colour | RAL9003 (Signal white) |
| Electrical Installation | 3 x 2,5 mm² |
| EN 60598-2-22 | Yes |
| Escap | Yes |
| ETIM class | Emergency luminaire (EC001957) |
| Glow Wire Test of Plastic Materials (°C) | 850 |
| IP Class | IP20 |
| Light Source | LED |
| Lumi Test | Yes |
| Luminous Flux (lm) | 60 |
| Max Input Power VA | 3 VA |
| Mounting | Recess |
| Nominal Supply Voltage | 220-240 V, 50/60 Hz AC |
| Protection Class | I |
| Aperture for Recess Mounting | ø75 |
| Temperature Range Min - Max (°C) | -25...+35 |
| Suitable for Through-Wiring | Yes |
Scale Images
Downloads and Data sheets
| File name | Download |
|---|---|
| Product card | Download |
| General information about installing Teknoware lights | Download |
| Installation Guide Slimspot - VOT35 | Download |
