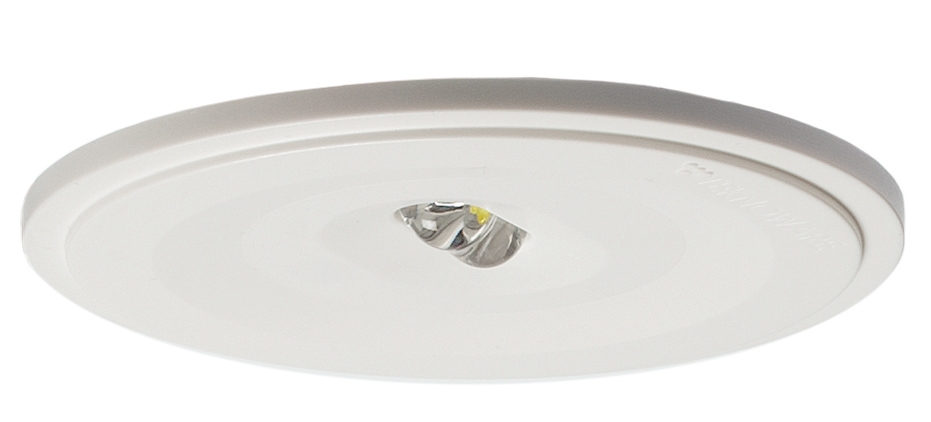

Linespot II Lowbay emergency light Y1492WA
Self-contained Escap Emergency light with 1 h Super Capacitor and Wireless Central Monitoring (Invidually packed TWS1492WA)
The Linespot II Lowbay is a compact and stylish emergency light designed especially for corridor lighting. The luminaire is recess mounted; the size of the recess mounting aperture is Ø 75 mm. Linespot II Lowbay’s design is an unobtrusive solution for energy-efficient emergency lighting.
| Product code | Y1492WA | Electrical number (FI) | 4281549 | |
|---|---|---|---|---|
| GTIN | 6438045017105 | TARIC code | 94056180 | |
| Weight | 0,90 kg | Measurements | 38,50 × 11,50 × 9,50 cm | |
| Aalto Control | Yes | Backup (h) | 1 h | |
| Body material | plastic | CE Mark | Yes | |
| Colour | RAL9003 (Signal white) | Electrical Installation | 3 x 2,5 mm² | |
| EN 60598-2-22 | Yes | Escap | Yes | |
| ETIM class | Emergency luminaire (EC001957) | Glow Wire Test of Plastic Materials (°C) | 850 | |
| IP Class | IP20 | Light Source | LED | |
| Lumi Test | Yes | Luminous Flux (lm) | 75 | |
| Max Input Power VA | 3 VA | Mounting | Recess | |
| Nominal Supply Voltage | 220-240 V, 50/60 Hz AC | Protection Class | I | |
| Aperture for Recess Mounting | ø75 | Temperature Range Min - Max (°C) | -25...+35 | |
| Suitable for Through-Wiring | Yes |
| Product code | Y1492WA |
|---|---|
| Electrical number (FI) | 4281549 |
| GTIN | 6438045017105 |
| TARIC code | 94056180 |
| Weight | 0,90 kg |
| Measurements | 38,50 × 11,50 × 9,50 cm |
| Aalto Control | Yes |
| Backup (h) | 1 h |
| Body material | plastic |
| CE Mark | Yes |
| Colour | RAL9003 (Signal white) |
| Electrical Installation | 3 x 2,5 mm² |
| EN 60598-2-22 | Yes |
| Escap | Yes |
| ETIM class | Emergency luminaire (EC001957) |
| Glow Wire Test of Plastic Materials (°C) | 850 |
| IP Class | IP20 |
| Light Source | LED |
| Lumi Test | Yes |
| Luminous Flux (lm) | 75 |
| Max Input Power VA | 3 VA |
| Mounting | Recess |
| Nominal Supply Voltage | 220-240 V, 50/60 Hz AC |
| Protection Class | I |
| Aperture for Recess Mounting | ø75 |
| Temperature Range Min - Max (°C) | -25...+35 |
| Suitable for Through-Wiring | Yes |
Scale Images
Light Distribution Charts
- 1 lux table for the centre line of an escape route, in accordance with EN 1838.
- Level of measurement 0.02 m, measurement results in emergency mode.
R1 distance from wall, X axis
R2 mounting distance, X axis
R4 distance from wall, Y axis
Emergency lighting for escape routes (ceiling mounting)
| Mounting height (m) | Below the light (lx) | R1 (m) | R2 (m) | R4 (m) |
| - | - | 1 lx | 1 lx | 1 lx |
| 2.5 | 2.5 | 5 | 16 | 1 |
| 3 | 1.5 | 4.5 | 16.5 | 1 |
Downloads and Data sheets
| File name | Download |
|---|---|
| Product card | Download |
| General information about installing Teknoware lights | Download |
| Installation Guide Linespot II, Recessed installation - VOT71 | Download |
Accessories
| Product code | Electrical number | Description | |
|---|---|---|---|
| TMT389 | 4280929 | Gasket ring TMT389 | Add to cart |
