Products / Self Contained Systems / Emergency exit lights / Heavy Exit / Heavy Exit emergency exit light TWSA992WM

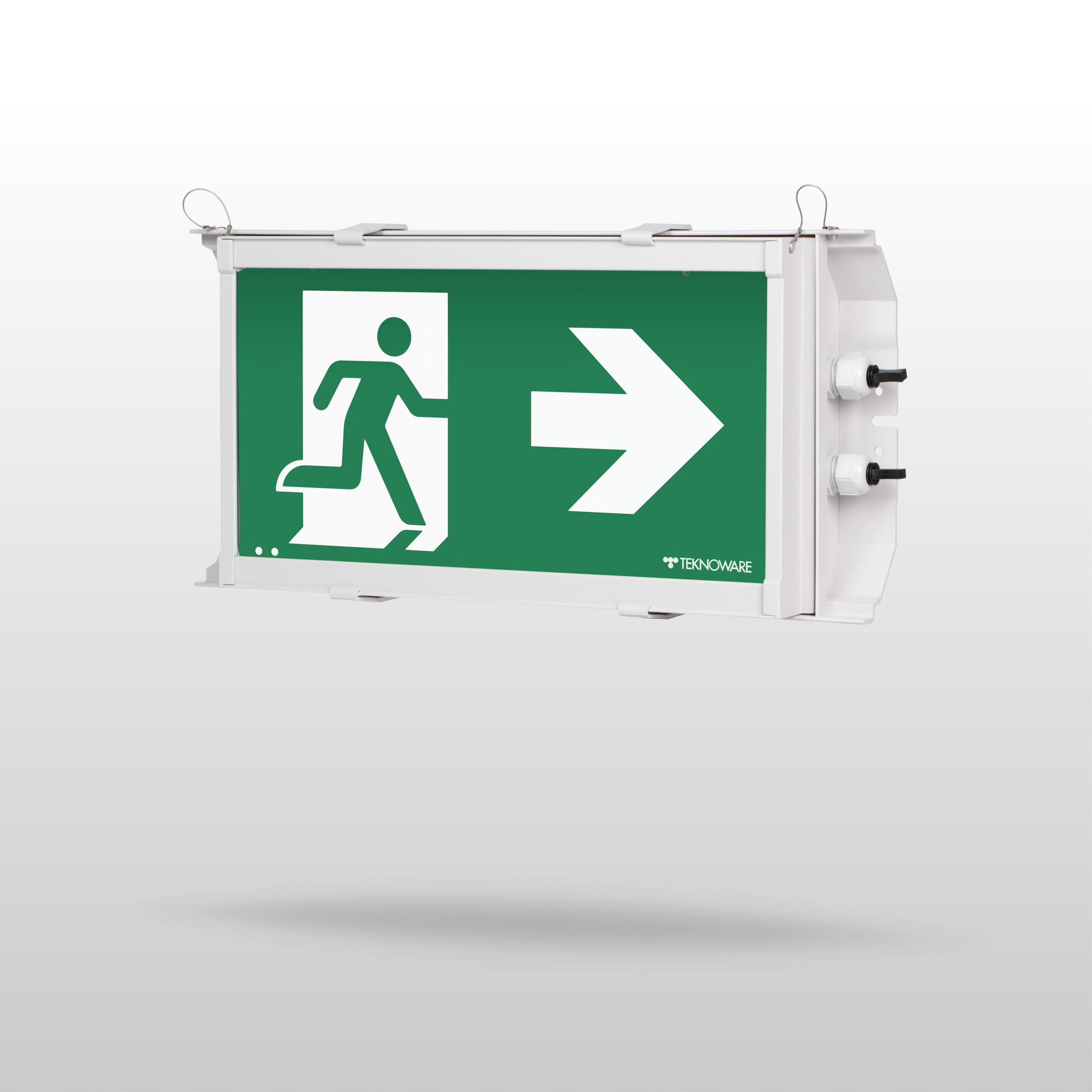

Heavy Exit emergency exit light TWSA992WM
Self-contained emergency exit light with 1 h super capacitor and self-testing
Teknoware Heavy Exit is a robust emergency exit light for demanding conditions such as factories, power plants, machine shops, barns and storage facilities. This nearly maintenance-free luminaire has a heat-tempered glass face and a long-lasting and durable aluminium frame. The Heavy Exit is IP65-rated, so it is highly resistant to dust, water and chemicals, and it will continue to function even in demanding conditions. The colour of the luminaire is gray (RAL 7047).
Product code | TWSA992WM | Electrical number (FI) | 4148646 | |
---|---|---|---|---|
GTIN | 6438045027203 | TARIC code | 94056180 | |
Weight | 4,00 kg | Measurements | 47,50 × 23,50 × 8,50 cm | |
Backup (h) | Yes | Body material | aluminium profile | |
CE Mark | Yes | Electrical Installation | 3 x 2,5 mm² | |
EN 1838 | Yes | EN 60598-2-22 | Yes | |
Escap | Yes | ETIM class | Emergency luminaire (EC001957) | |
Glow Wire Test of Plastic Materials (°C) | 650 | IP Class | IP65 | |
Light Source | LED | Lumi Test | Yes | |
Max Input Power VA | 3,2 VA | Mounting | Wall | |
Nominal Supply Voltage | 220-240 V, 50/60 Hz AC | Protection Class | I | |
Temperature Range Min - Max (°C) | -25…+35 | Suitable for Through-Wiring | Yes | |
Viewing distance | 37 m |
Product code | TWSA992WM |
---|---|
Electrical number (FI) | 4148646 |
GTIN | 6438045027203 |
TARIC code | 94056180 |
Weight | 4,00 kg |
Measurements | 47,50 × 23,50 × 8,50 cm |
Backup (h) | Yes |
Body material | aluminium profile |
CE Mark | Yes |
Electrical Installation | 3 x 2,5 mm² |
EN 1838 | Yes |
EN 60598-2-22 | Yes |
Escap | Yes |
ETIM class | Emergency luminaire (EC001957) |
Glow Wire Test of Plastic Materials (°C) | 650 |
IP Class | IP65 |
Light Source | LED |
Lumi Test | Yes |
Max Input Power VA | 3,2 VA |
Mounting | Wall |
Nominal Supply Voltage | 220-240 V, 50/60 Hz AC |
Protection Class | I |
Temperature Range Min - Max (°C) | -25…+35 |
Suitable for Through-Wiring | Yes |
Viewing distance | 37 m |
Scale Images
Downloads and Data sheets
File name | Download |
---|---|
Product card | Download |
General information about installing Teknoware lights | Download |
Installation Guide Heavy - VOT121 | Download |
Required products
Product code | Electrical number | Description | Pictograms | |
---|---|---|---|---|
PBVA903 | 4148651 | Pictogram PBVA903 | Add to cart | |
PBVA902 | 4148650 | Pictogram PBVA902 | Add to cart | |
PBVA901 | 4148648 | Pictogram PBVA901 | Add to cart |
