Zonespot II: Lowbay

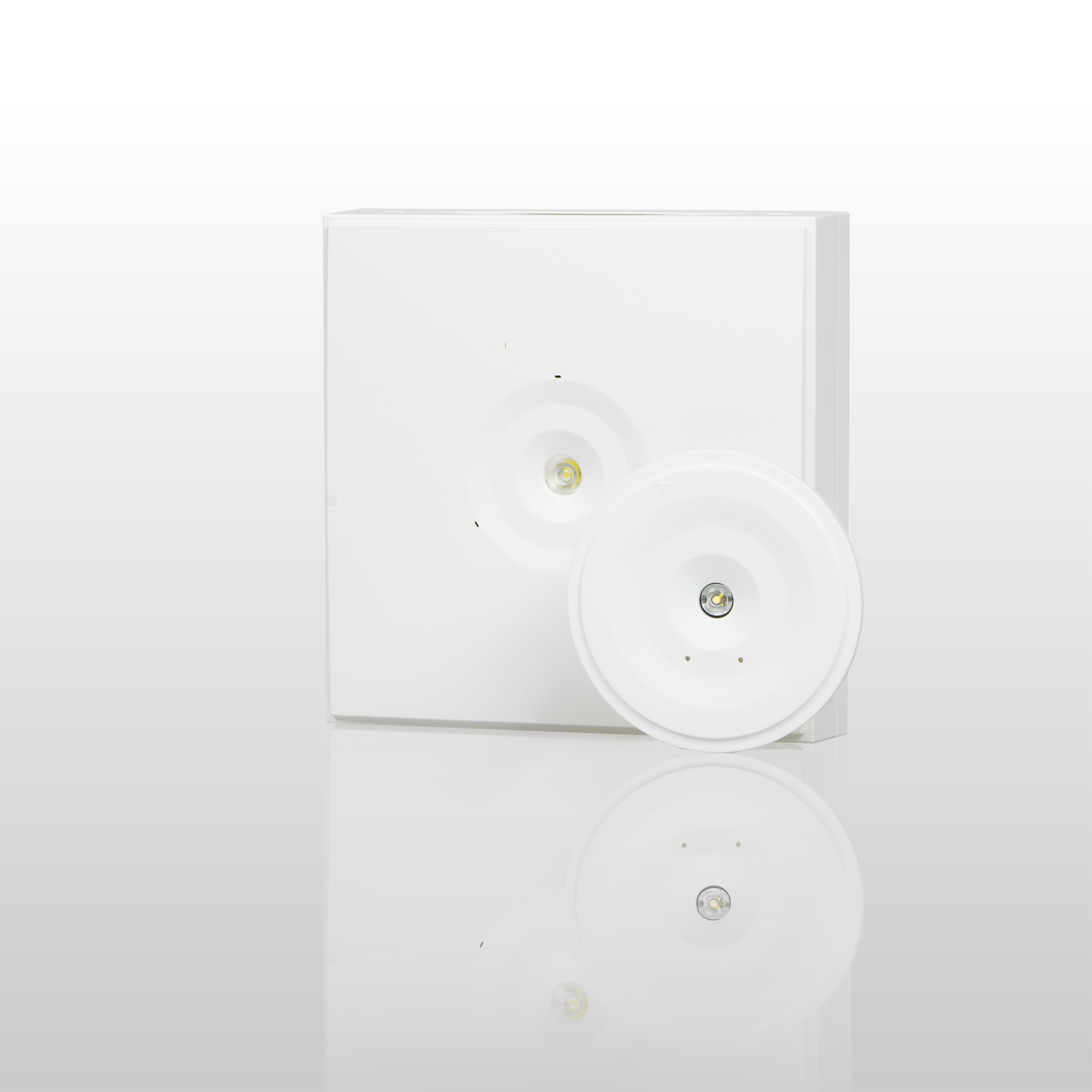

The Teknoware Zonespot II Lowbay emergency lights provide a broad and even light pattern that illuminates open areas efficiently. Their efficient optics enable mounting heights of up to 16 metres. The Zonespot II is available in two models: square for surface mounting and round for recess mounting.
The square surface-mounted model has IP44 rating, making it splash resistant.
Thanks to its compact size, the round recess-mounted model blends seamlessly into the architecture of the space. The visible parts of the recess mounted model are also splash-resistant when equipped with an IP44-rated additional gasket. The aperture for recess mounting is 75 mm. The standard colour is white (RAL 9003). The surface-mounted model is also available in black (RAL 9005). Other RAL colours are available upon special order.
The product is available with an Escap supercapacitor or battery and wireless AaltoCtrl remote monitoring.
Luminaires with 1-hour Escap-supercapacitor and wireless remote monitoring
Product code | Electrical number | Colour | IP Class | Mounting | Nominal Supply Voltage | |
---|---|---|---|---|---|---|
TWS0492WA | 4280936 | RAL9003 (Signal white) | IP20 | Recess | 220-240 V, 50/60 Hz AC | Add to cart |
TWS0492WA4 | 4244110 | RAL9003 (Signal white) | IP20 | Recess | 220-240 V, 50/60 Hz AC | Add to cart |
TWS0492WA5 | 4244111 | RAL9003 (Signal white) | IP20 | Recess | 220-240 V, 50/60 Hz AC | Add to cart |
TWS0492WAC | 4282200 | RAL9003 (Signal white) | IP20 | Recess | 220-240 V, 50/60 Hz AC | Add to cart |
TWS9292WA | 4280932 | RAL9003 (Signal white) | IP43 | Surface | 220-240 V, 50/60 Hz AC | Add to cart |
TWS9292WAC | 4280992 | RAL9003 (Signal white) | IP43 | Surface | 220-240 V, 50/60 Hz AC | Add to cart |
TWS9292WAT | 4148788 | RAL9005 (Jet black) | IP43 | Surface | 220-240 V, 50/60 Hz AC | Add to cart |
Y0492WA | 4281558 | RAL9003 (Signal white) | IP20 | Recess | 220-240 V, 50/60 Hz AC | Add to cart |
Y0492WAC | 4282201 | RAL9003 (Signal white) | IP20 | Recess | 220-240 V, 50/60 Hz AC | Add to cart |
Y9292WA | 4281540 | RAL9003 (Signal white) | IP43 | Surface | 220-240 V, 50/60 Hz AC | Add to cart |
Luminaires with 1-hour Escap-supercapacitor and self-testing
Product code | Electrical number | Colour | IP Class | Mounting | Nominal Supply Voltage | |
---|---|---|---|---|---|---|
TWS0492WM | 4280937 | RAL9003 (Signal white) | IP20 | Recess | 220-240 V, 50/60 Hz AC | Add to cart |
TWS0492WM4 | 4244112 | RAL9003 (Signal white) | IP20 | Recess | 220-240 V, 50/60 Hz AC | Add to cart |
TWS0492WM5 | 4244113 | RAL9003 (Signal white) | IP20 | Recess | 220-240 V, 50/60 Hz AC | Add to cart |
TWS0492WMC | 4282202 | RAL9003 (Signal white) | IP20 | Recess | 220-240 V, 50/60 Hz AC | Add to cart |
TWS9292WM | 4280933 | RAL9003 (Signal white) | IP43 | Surface | 220-240 V, 50/60 Hz AC | Add to cart |
TWS9292WMC | 4280993 | RAL9003 (Signal white) | IP43 | Surface | 220-240 V, 50/60 Hz AC | Add to cart |
TWS9292WMT | 4148789 | RAL9005 (Jet black) | IP43 | Surface | 220-240 V, 50/60 Hz AC | Add to cart |
Y0492WM | 4281559 | RAL9003 (Signal white) | IP20 | Recess | 220-240 V, 50/60 Hz AC | Add to cart |
Y0492WMC | 4282203 | RAL9003 (Signal white) | IP20 | Recess | 220-240 V, 50/60 Hz AC | Add to cart |
Y9292WM | 4281541 | RAL9003 (Signal white) | IP43 | Surface | 220-240 V, 50/60 Hz AC | Add to cart |
Y9292WMC | 4280995 | RAL9003 (Signal white) | IP43 | Surface | 220-240 V, 50/60 Hz AC | Add to cart |
Y9292WMT | 4148907 | RAL9005 (Jet black) | IP43 | Surface | 220-240 V, 50/60 Hz AC | Add to cart |
Luminaires with 1-hour battery and wireless remote monitoring
Product code | Electrical number | Colour | IP Class | Mounting | Nominal Supply Voltage | |
---|---|---|---|---|---|---|
TWT0452WA | 4280986 | RAL9003 (Signal white) | IP20 | Recess | 220-240 V, 50/60 Hz AC | Add to cart |
TWT9252WA | 4280962 | RAL9003 (Signal white) | IP43 | Surface | 220-240 V, 50/60 Hz AC | Add to cart |
TWT9252WAT | 4148809 | RAL9005 (Jet black) | IP43 | Surface | 220-240 V, 50/60 Hz AC | Add to cart |
Y0452WA | 4281554 | RAL9003 (Signal white) | IP20 | Recess | 220-240 V, 50/60 Hz AC | Add to cart |
Y9252WA | 4281536 | RAL9003 (Signal white) | IP43 | Surface | 220-240 V, 50/60 Hz AC | Add to cart |
Luminaires with 3-hour battery and wireless remote monitoring
Product code | Electrical number | Colour | IP Class | Mounting | Nominal Supply Voltage | |
---|---|---|---|---|---|---|
TWT0453WA | 4280987 | RAL9003 (Signal white) | IP20 | Recess | 220-240 V, 50/60 Hz AC | Add to cart |
TWT9253WA | 4280964 | RAL9003 (Signal white) | IP43 | Surface | 220-240 V, 50/60 Hz AC | Add to cart |
TWT9253WAT | 4148811 | RAL9005 (Jet black) | IP43 | Surface | 220-240 V, 50/60 Hz AC | Add to cart |
Y0453WA | 4281556 | RAL9003 (Signal white) | IP20 | Recess | 220-240 V, 50/60 Hz AC | Add to cart |
Y9253WA | 4281538 | RAL9003 (Signal white) | IP43 | Surface | 220-240 V, 50/60 Hz AC | Add to cart |
Luminaires with 1-hour battery and self-testing
Product code | Electrical number | Colour | IP Class | Mounting | Nominal Supply Voltage | |
---|---|---|---|---|---|---|
TWT0452WM | 4280984 | RAL9003 (Signal white) | IP20 | Recess | 220-240 V, 50/60 Hz AC | Add to cart |
TWT9252WM | 4280963 | RAL9003 (Signal white) | IP43 | Surface | 220-240 V, 50/60 Hz AC | Add to cart |
TWT9252WMT | 4148810 | RAL9005 (Jet black) | IP43 | Surface | 220-240 V, 50/60 Hz AC | Add to cart |
Y0452WM | 4281555 | RAL9003 (Signal white) | IP20 | Recess | 220-240 V, 50/60 Hz AC | Add to cart |
Y9252WM | 4281537 | RAL9003 (Signal white) | IP43 | Surface | 220-240 V, 50/60 Hz AC | Add to cart |
Y9252WMT | 4148903 | RAL9005 (Jet black) | IP43 | Surface | 220-240 V, 50/60 Hz AC | Add to cart |
Luminaires with 3-hour battery and self-testing
Product code | Electrical number | Colour | IP Class | Mounting | Nominal Supply Voltage | |
---|---|---|---|---|---|---|
TWT0453WM | 4280985 | RAL9003 (Signal white) | IP20 | Recess | 220-240 V, 50/60 Hz AC | Add to cart |
TWT9253WM | 4280965 | RAL9003 (Signal white) | IP43 | Surface | 220-240 V, 50/60 Hz AC | Add to cart |
TWT9253WMT | 4148812 | RAL9005 (Jet black) | IP43 | Surface | 220-240 V, 50/60 Hz AC | Add to cart |
Y0453WM | 4281557 | RAL9003 (Signal white) | IP20 | Recess | 220-240 V, 50/60 Hz AC | Add to cart |
Y9253WM | 4281539 | RAL9003 (Signal white) | IP43 | Surface | 220-240 V, 50/60 Hz AC | Add to cart |
