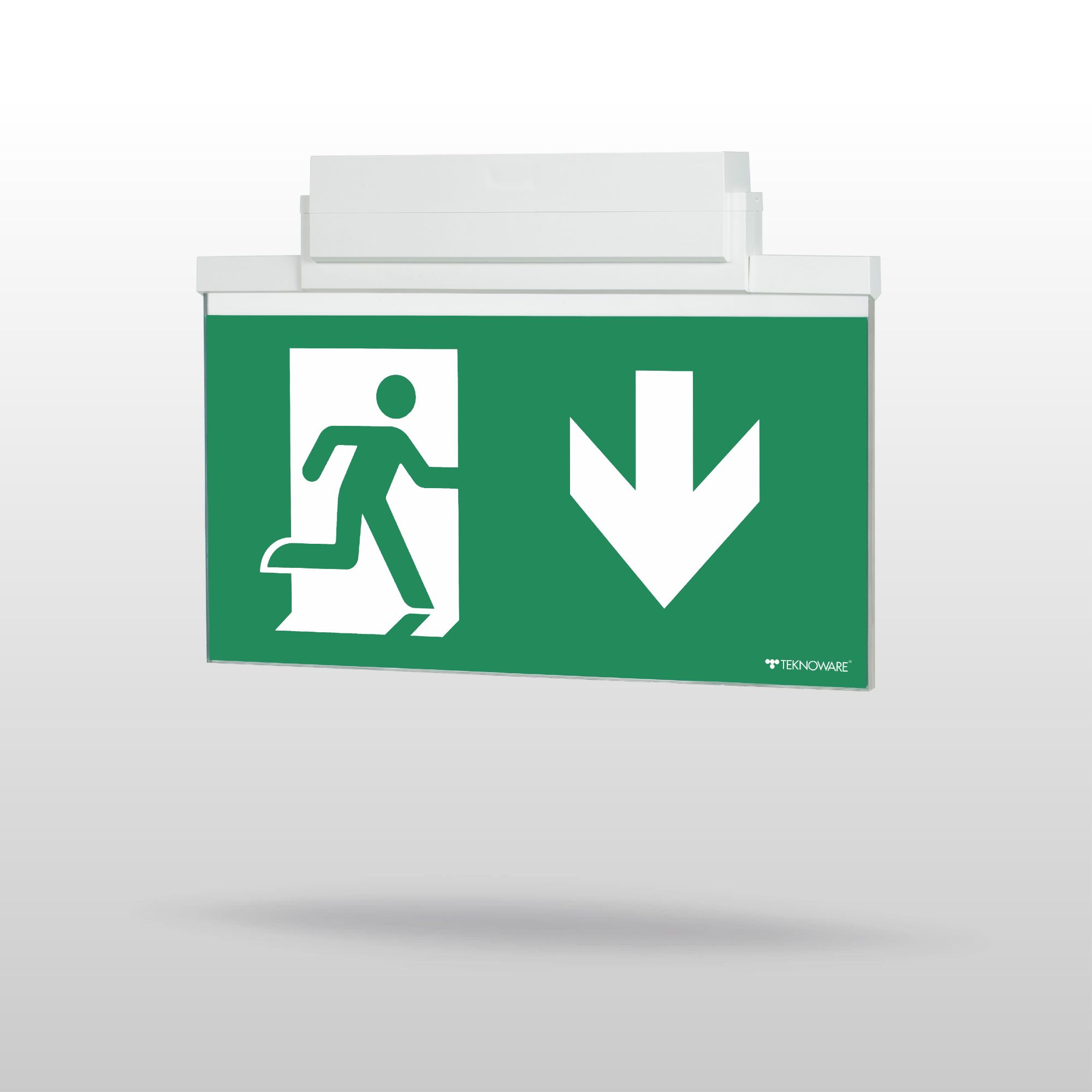

ESC 81 LED Emergency Exit Light Y8151WK159
Addressable 230 V centrally supplied LED Emergency Exit Light with 1-sided pictogram, arrow down, 40 m viewing distance (Invidually packed TWT8151WK)
ESC 81 is an innovative LED exit light equipped with a light plate. It combines cutting edge technology with modern luminaire design.
Evenly illuminated light plates, low power consumption and slender looking luminaires are the result of Teknoware’s pioneering, expertise in electronics and product design. Luminaire can be used as 1 or 2 sided, recess and surface mounted.
ESC 81 is particularly easy and fast to install thanks to a separate mounting piece, into which also the power supply is connected.
Individually packed product—includes a pictogram or pictogram set.
| Product code | Y8151WK159 | Electrical number (FI) | 4281379 | |
|---|---|---|---|---|
| GTIN | 6438045016160 | TARIC code | 94056180 | |
| Weight | 1,40 kg | Measurements | 41,00 × 29,00 × 4,60 cm | |
| Body material | plastic | CE Mark | Yes | |
| Colour | RAL9003 (Signal white) | Electrical Installation | 2/3 x 2,5 mm² | |
| EN 1838 | Yes | EN 60598-2-22 | Yes | |
| ETIM class | Emergency luminaire (EC001957) | Glow Wire Test of Plastic Materials (°C) | 650 | |
| IP Class | IP43 | Light Source | LED | |
| Max Input Power VA | 6,5 VA | Max Input Power W | 4,2 W | |
| Mounting | Ceiling, Wall | Mounting option | Flag, Pendel, Recess | |
| Nominal Supply Voltage | 220-240 V, 50/60 Hz AC, DC | Pictogram | down | |
| Protection Class | II | Aperture for Recess Mounting | 45 x 275 | |
| Tapsa Control | Yes | Temperature Range Min - Max (°C) | -30...+50 | |
| Suitable for Through-Wiring | Yes | Viewing distance | 40 m |
| Product code | Y8151WK159 |
|---|---|
| Electrical number (FI) | 4281379 |
| GTIN | 6438045016160 |
| TARIC code | 94056180 |
| Weight | 1,40 kg |
| Measurements | 41,00 × 29,00 × 4,60 cm |
| Body material | plastic |
| CE Mark | Yes |
| Colour | RAL9003 (Signal white) |
| Electrical Installation | 2/3 x 2,5 mm² |
| EN 1838 | Yes |
| EN 60598-2-22 | Yes |
| ETIM class | Emergency luminaire (EC001957) |
| Glow Wire Test of Plastic Materials (°C) | 650 |
| IP Class | IP43 |
| Light Source | LED |
| Max Input Power VA | 6,5 VA |
| Max Input Power W | 4,2 W |
| Mounting | Ceiling, Wall |
| Mounting option | Flag, Pendel, Recess |
| Nominal Supply Voltage | 220-240 V, 50/60 Hz AC, DC |
| Pictogram | down |
| Protection Class | II |
| Aperture for Recess Mounting | 45 x 275 |
| Tapsa Control | Yes |
| Temperature Range Min - Max (°C) | -30...+50 |
| Suitable for Through-Wiring | Yes |
| Viewing distance | 40 m |
Scale Images
Downloads and Data sheets
| File name | Download |
|---|---|
| Product card | Download |
| General information about installing Teknoware lights | Download |
| Installation Guide ESC 81 - VOT52 | Download |
