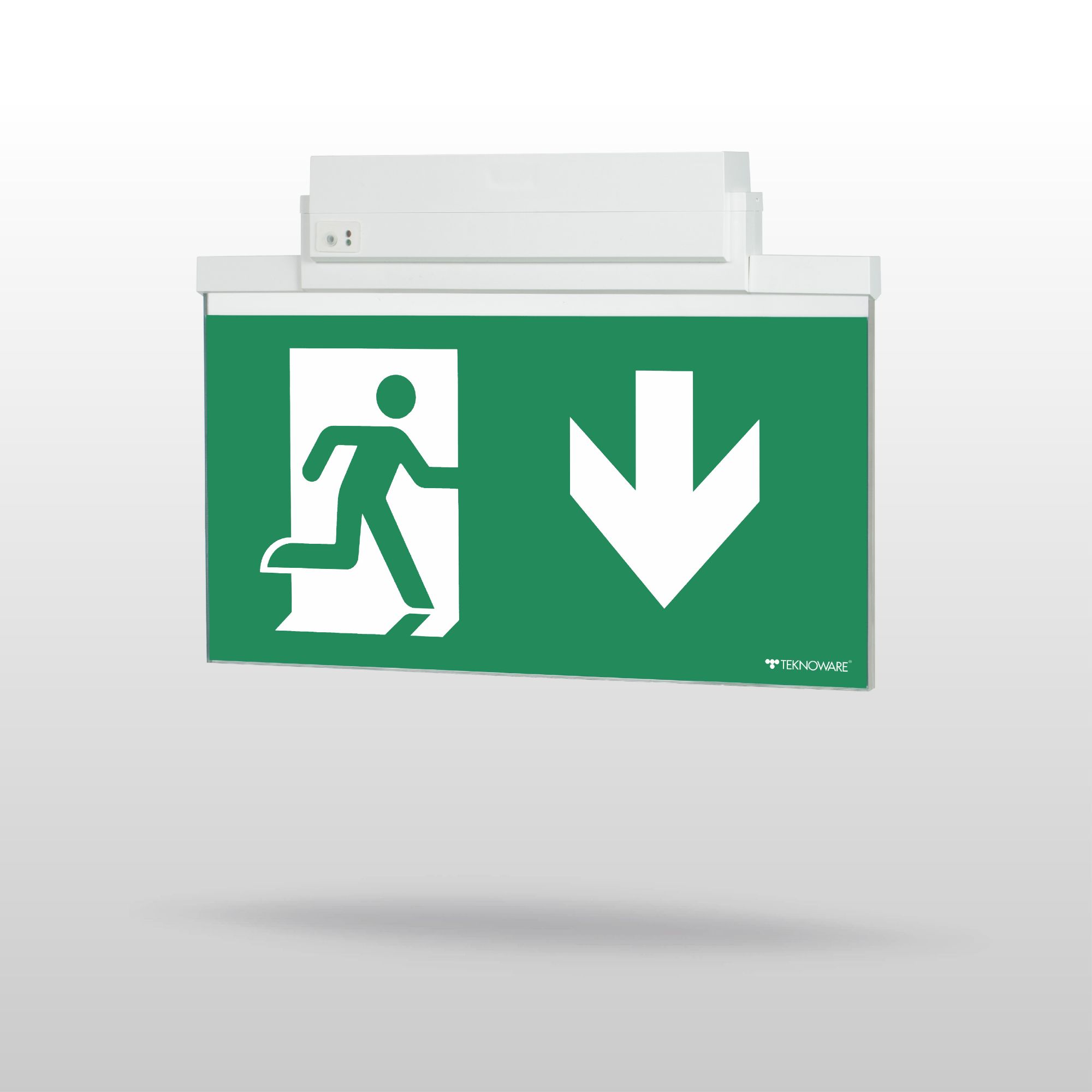

ESC 81 LED Emergency Exit Light TWS8192WM
Self-contained ESCAP Emergency Exit Light with 1 h Super Capacitor and Lumi Test Self-testing
ESC 81 is an innovative LED exit light equipped with a light plate. It combines cutting edge technology with modern luminaire design.
Evenly illuminated light plates, low power consumption and slender looking luminaires are the result of Teknoware’s pioneering, expertise in electronics and product design. Luminaire can be used as 1 or 2 sided, recess and surface mounted.
ESC 81 is particularly easy and fast to install thanks to a separate mounting piece, into which also the power supply is connected.
Pictograms not included—must be ordered separately.
| Product code | TWS8192WM | Electrical number (FI) | 4210502 | |
|---|---|---|---|---|
| GTIN | 6438045022024 | TARIC code | 94056180 | |
| Weight | 1,40 kg | Measurements | 40,50 × 4,00 × 28,70 cm | |
| Backup (h) | 1 h | Body material | plastic | |
| CE Mark | Yes | Colour | RAL9003 (Signal white) | |
| Electrical Installation | 2/3 x 2,5 mm² | EN 1838 | Yes | |
| EN 60598-2-22 | Yes | Escap | Yes | |
| ETIM class | Emergency luminaire (EC001957) | Glow Wire Test of Plastic Materials (°C) | 650 | |
| IP Class | IP43 | Light Source | LED | |
| Lumi Test | Yes | Max Input Power VA | 4 VA | |
| Mounting | Ceiling, Wall | Mounting option | Flag, Pendel, Recess | |
| Nominal Supply Voltage | 220-240 V, 50/60 Hz AC | Protection Class | II | |
| Aperture for Recess Mounting | 53 x 415 | Temperature Range Min - Max (°C) | -25...+35 | |
| Suitable for Through-Wiring | Yes | Viewing distance | 40 m, 60 m |
| Product code | TWS8192WM |
|---|---|
| Electrical number (FI) | 4210502 |
| GTIN | 6438045022024 |
| TARIC code | 94056180 |
| Weight | 1,40 kg |
| Measurements | 40,50 × 4,00 × 28,70 cm |
| Backup (h) | 1 h |
| Body material | plastic |
| CE Mark | Yes |
| Colour | RAL9003 (Signal white) |
| Electrical Installation | 2/3 x 2,5 mm² |
| EN 1838 | Yes |
| EN 60598-2-22 | Yes |
| Escap | Yes |
| ETIM class | Emergency luminaire (EC001957) |
| Glow Wire Test of Plastic Materials (°C) | 650 |
| IP Class | IP43 |
| Light Source | LED |
| Lumi Test | Yes |
| Max Input Power VA | 4 VA |
| Mounting | Ceiling, Wall |
| Mounting option | Flag, Pendel, Recess |
| Nominal Supply Voltage | 220-240 V, 50/60 Hz AC |
| Protection Class | II |
| Aperture for Recess Mounting | 53 x 415 |
| Temperature Range Min - Max (°C) | -25...+35 |
| Suitable for Through-Wiring | Yes |
| Viewing distance | 40 m, 60 m |
