Products / Central Battery Systems / Emergency exit lights / ESC 80 / ESC 80 emergency exit light Y8041W103

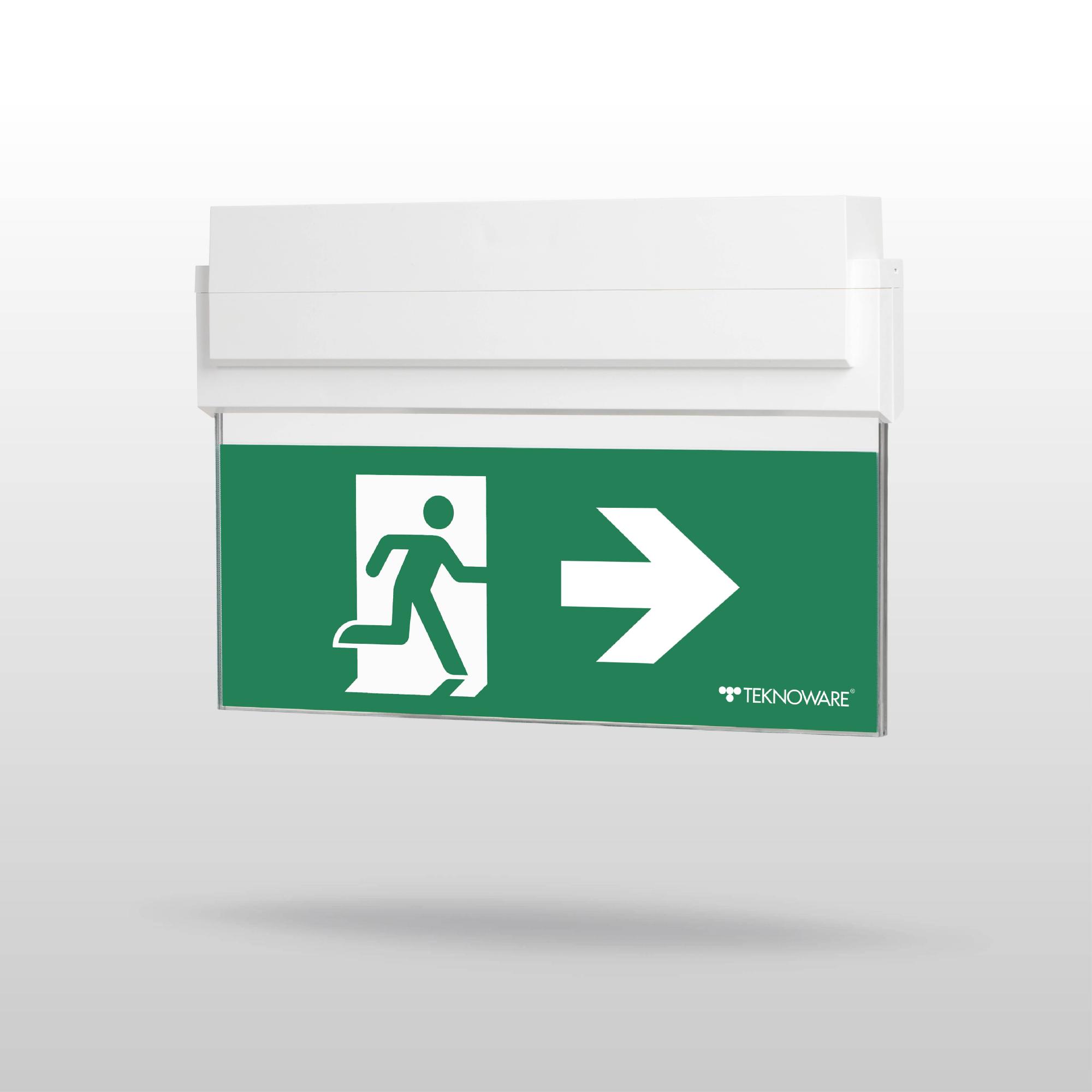

ESC 80 emergency exit light Y8041W103
24 V centrally supplied LED Emergency Exit Light with 2-sided pictogram, arrow left/right, 20 m viewing distance (Invidually packed TWT8041W)
ESC 80 is an emergency exit light equipped with a light plate, combining cutting edge technology combined with modern luminaire design. Thanks to Teknoware’s innovative electronics and product design, the ESC 80 luminaire combines uniformly illuminated pictograms, low power consumption, as well as a slender appearance.
There is a selection of three different luminaire sizes. ESC 80 luminaires can be used as 1 or 2 sided, as well as recess or surface mounted.
ESC 80 is particularly easy and fast to install thanks to a separate mounting piece, into which also the power supply is connected.
Individually packed product—includes a pictogram or pictogram set.
| Product code | Y8041W103 | Electrical number (FI) | 4281173 | |
|---|---|---|---|---|
| GTIN | 6438045012612 | TARIC code | 94056180 | |
| Weight | 0,64 kg | Measurements | 27,30 × 20,50 × 4,60 cm | |
| Body material | plastic | CE Mark | Yes | |
| Colour | RAL9003 (Signal white) | Electrical Installation | 2/3 x 2,5 mm² | |
| EN 1838 | Yes | EN 60598-2-22 | Yes | |
| ETIM class | Emergency luminaire (EC001957) | IP Class | IP43 | |
| Light Source | LED | Max Input Power VA | 2 VA | |
| Max Input Power W | 2,5 W | Mounting | Ceiling, Wall | |
| Mounting option | Flag, Pendel, Recess | Nominal Supply Voltage | 24 V, 50/60 Hz AC, DC | |
| Pictogram | right & left | Protection Class | III | |
| Aperture for Recess Mounting | 45 x 275 | Temperature Range Min - Max (°C) | -30...+50 | |
| Suitable for Through-Wiring | Yes | Viewing distance | 20 m |
| Product code | Y8041W103 |
|---|---|
| Electrical number (FI) | 4281173 |
| GTIN | 6438045012612 |
| TARIC code | 94056180 |
| Weight | 0,64 kg |
| Measurements | 27,30 × 20,50 × 4,60 cm |
| Body material | plastic |
| CE Mark | Yes |
| Colour | RAL9003 (Signal white) |
| Electrical Installation | 2/3 x 2,5 mm² |
| EN 1838 | Yes |
| EN 60598-2-22 | Yes |
| ETIM class | Emergency luminaire (EC001957) |
| IP Class | IP43 |
| Light Source | LED |
| Max Input Power VA | 2 VA |
| Max Input Power W | 2,5 W |
| Mounting | Ceiling, Wall |
| Mounting option | Flag, Pendel, Recess |
| Nominal Supply Voltage | 24 V, 50/60 Hz AC, DC |
| Pictogram | right & left |
| Protection Class | III |
| Aperture for Recess Mounting | 45 x 275 |
| Temperature Range Min - Max (°C) | -30...+50 |
| Suitable for Through-Wiring | Yes |
| Viewing distance | 20 m |
Scale Images
Downloads and Data sheets
| File name | Download |
|---|---|
| Product card | Download |
| Installation Guide ESC 80 - VOT51 | Download |
| General information about installing Teknoware lights | Download |
Accessories
| Product code | Electrical number | Description | |
|---|---|---|---|
| TW77507B | 4281135 | Shock protecting cover TW77507B | Add to cart |
| TWT9002 | 4211300 | Flag bracket TWT9002 | Add to cart |
| TWT8001 | 4281031 | Recess mounting frame TWT8001 | Add to cart |
| TWT9000 | 4211302 | Suspension bracket TWT9000 | Add to cart |
