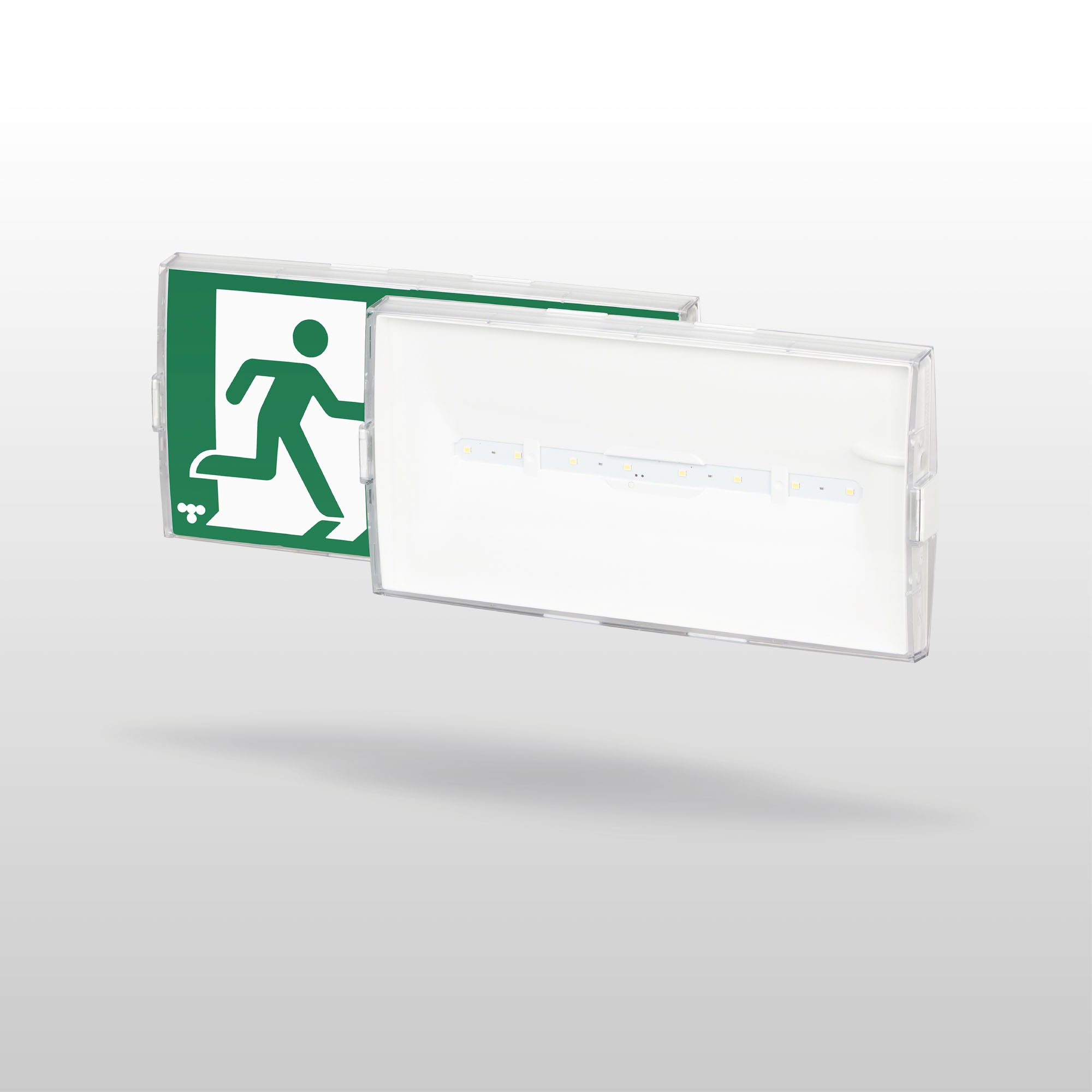

Easy Combo emergency light or emergency exit light YB152WM120
Self-contained Emergency / Exit Light with 1 h Battery and Lumi Test Self-testing. The package includes the luminaire, and a rotatable sign.
Teknoware Easy Combo is a combination light, which can be used as either an emergency or emergency exit light. When fitted with the rotatable sign, Combo can show the direction arrow pointing up, down, left or right. When Combo is used as an emergency exit light, a separate ceiling bracket is needed for ceiling installation (TWTB104). When Combo is used as an emergency light, the sign is not installed.
Easy Combo can easily be surface or semi-flush mounted thanks to its practical design. Easy’s wide product family offers an ideal choice when you want a single fixture for your entire property’s needs.
| Product code | YB152WM120 | Electrical number (FI) | 4244142 | |
|---|---|---|---|---|
| GTIN | 6438045024677 | TARIC code | 94056180 | |
| Weight | 0,55 kg | Measurements | 27,00 × 14,70 × 6,00 cm | |
| Backup (h) | 1 h | Body material | plastic | |
| CE Mark | Yes | Colour | RAL9003 (Signal white) | |
| Electrical Installation | 2/3 x 2,5 mm² | EN 1838 | Yes | |
| EN 60598-2-22 | Yes | ETIM class | Emergency luminaire (EC001957) | |
| Glow Wire Test of Plastic Materials (°C) | 850 | IP Class | IP40 | |
| Light Source | LED | Lumi Test | Yes | |
| Luminous Flux (lm) | 170 | Max Input Power VA | 8 VA | |
| Mounting | Ceiling, Recess, Surface, Wall | Nominal Supply Voltage | 220-240 V, 50/60 Hz AC | |
| Protection Class | II | Temperature Range Min - Max (°C) | -5...+35 | |
| Suitable for Through-Wiring | Yes | Viewing distance | 25 m |
| Product code | YB152WM120 |
|---|---|
| Electrical number (FI) | 4244142 |
| GTIN | 6438045024677 |
| TARIC code | 94056180 |
| Weight | 0,55 kg |
| Measurements | 27,00 × 14,70 × 6,00 cm |
| Backup (h) | 1 h |
| Body material | plastic |
| CE Mark | Yes |
| Colour | RAL9003 (Signal white) |
| Electrical Installation | 2/3 x 2,5 mm² |
| EN 1838 | Yes |
| EN 60598-2-22 | Yes |
| ETIM class | Emergency luminaire (EC001957) |
| Glow Wire Test of Plastic Materials (°C) | 850 |
| IP Class | IP40 |
| Light Source | LED |
| Lumi Test | Yes |
| Luminous Flux (lm) | 170 |
| Max Input Power VA | 8 VA |
| Mounting | Ceiling, Recess, Surface, Wall |
| Nominal Supply Voltage | 220-240 V, 50/60 Hz AC |
| Protection Class | II |
| Temperature Range Min - Max (°C) | -5...+35 |
| Suitable for Through-Wiring | Yes |
| Viewing distance | 25 m |
Scale Images
Light Distribution Charts
- 0.5 lux table for open areas, in accordance with EN 1838; 0.5-m border zone is taken into account in the table.
- Level of measurement 0.02 m, measurement result in emergency mode
R1 distance from wall, X axis
R2 mounting distance, X axis
R3 mounting distance, Y axis
R4 distance from wall, Y axis
Emergency lighting for open areas (ceiling mounting)
| Mounting height (m) | Below the light (lx) | R1 (m) | R2 (m) | R3 (m) | R4 (m) |
| - | - | 0.5 lx | 0.5 lx | 0.5 lx | 0.5 lx |
| 2.5 | 7 | 3.5 | 7 | 7 | 3.5 |
| 3 | 5 | 3.5 | 7 | 7 | 3.5 |
| 4 | 2.5 | 3.5 | 7.5 | 7.5 | 3.5 |
| 6 | 1.2 | 4 | 8 | 8 | 4 |
- 1 lux table for the centre line of an escape route, in accordance with EN 1838.
- Level of measurement 0.02 m, measurement results in emergency mode.
R1 distance from wall, X axis
R2 mounting distance, X axis
R4 distance from wall, Y axis
Emergency lighting for escape routes (ceiling mounting)
| Mounting height (m) | Below the light (lx) | R1 (m) | R2 (m) | R4 (m) |
| - | - | 1 lx | 1 lx | 1 lx |
| 2.5 | 7 | 3 | 8 | 1 |
| 3 | 5 | 3 | 8.5 | 1 |
| 4 | 2.5 | 3 | 9.5 | 1 |
Downloads and Data sheets
| File name | Download |
|---|---|
| Product card | Download |
| Installation Guide Combo - VOT113 | Download |
Required products
| Product code | Electrical number | Description | |
|---|---|---|---|
| TWTB101 | 4244181 | Easy Combo recess mounting frame TWTB101 | Add to cart |
| TWTB103 | 4244182 | Easy Combo flag bracket TWTB103 | Add to cart |
| TWTB104 | 4244183 | Easy Combo ceiling bracket TWTB104 | Add to cart |
| TWTB105 | 4244184 | Easy Combo suspension bracket TWTB105 | Add to cart |
| TWTB110 | 4148627 | Easy Combo IP54 gasket TWTB110 | Add to cart |
Accessories
| Product code | Electrical number | Description | |
|---|---|---|---|
| TW77508B | 4281134 | Shock protecting cover TW77508B | Add to cart |
| TWTB101 | 4244181 | Easy Combo recess mounting frame TWTB101 | Add to cart |
| TWTB103 | 4244182 | Easy Combo flag bracket TWTB103 | Add to cart |
| TWTB104 | 4244183 | Easy Combo ceiling bracket TWTB104 | Add to cart |
| TWTB105 | 4244184 | Easy Combo suspension bracket TWTB105 | Add to cart |
| TWTB110 | 4148627 | Easy Combo IP54 gasket TWTB110 | Add to cart |
